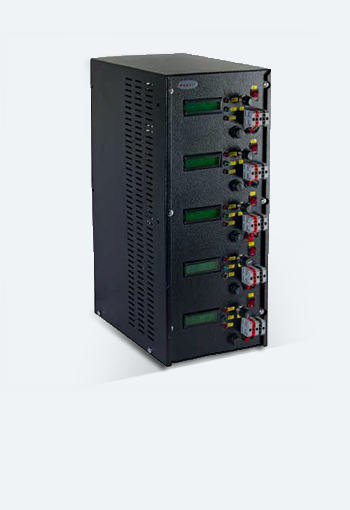

A SMPS Battery Charger (CVCC type) is an electronic power supply with a switching regulator for efficient power conversion. When the battery tries to draw more current than the rated current, the Battery Chargers provide both constant voltage (CV) and constant current (CC) charging. The charging methodology is determined by the size and kind of the charged battery.
Product Specifications
-
Rating (Battery Charging Capacity)
- 12v/5amp (7 AH - 40 AH) 5 Station
- 12v/12amp (35 AH - 120 AH) 5 Station
- 12v/5amp (7 AH - 40 AH) 3 Station
- 12v/12amp (35 AH - 120 AH) 3 Station
- 12v/5amp (7 AH - 40 AH) 1 Station
- 12v/12amp (35 AH - 120 AH) 1 Station
-
Current Setting (Max.)0.5 A To 5 A | 3.5 A To 12 A | 0.5 A To 5 A | 3.5 A To 12 A | 0.5 A To 5 A | 3.5 A To 12 A
-
Charging ModeAutomatic
-
Charging Cut Off Voltage:14.5v+/-0.2v
-
Input Voltage Range160 To 270 Volts
-
Protections
- Reverse Polarity Protection
- Short Circuit Protection
- Over Current Protection
- Ac Surge Protection At Input With Mov
- Soft Start And Soft Stop Feature Without Inrush Current
- Over Voltage Protection At 280v At Input And Automatic Recovery At 270 V When The Voltage Is Reduced From 280v
- Not To Charge Battery In Case One Or More Cells Are Internally Short / Battery Voltage < 10.5v
-
Efficiency>75% For Smps At 230v.
-
Ripple<100mv Peak To Peak At Full Load
Industries
Best Suited for
Telecom and Infocom Power Supply
Power Generating Plants
Railway Utilities
Process Industries
Switchgear Protection
Substation Batteries
DG Set Batteries
Battery-Operated Material Handling Equipments
